Extra Long Range 2500m Solar Gate Alert

Solar Gate Alert Kit

Solar Wireless Driveway Alert

Long Range Solar Gate & Driveway Alert

Our new Long Range Solar Driveway & Gate Alert Kit is a very cost effective DIY motion alarm. No cabling or power needed. If a person or car enters through your gate, driveway, shed or entry point, the solar powered wireless motion sensor signals the base receiver to sound a chime or melody. The base receiver will connect up to 4 motion sensors. Additional motion sensors are optional at the checkout. Call or email for more information.

From $250.00

To $390.00

In stock

SKU
SOLAR-LONG-PIR-B
Customize Long Range Solar Gate & Driveway Alert
Long Range Solar Gate & Driveway Alert   + $250.00

* Required Fields

Your Customization
Long Range Solar Gate & Driveway Alert
Long Range Solar Gate & Driveway Alert

In stock

$250.00

Summary

    The indoor base receiver plugs into any Australian 240V power point. The base receiver sounds a volume adjustable chime or melody the moment it receives the wireless motion signal from up to 800m away. The melody has over 30 selectable from which to choose audio melodies or sounds, including a dog bark. In other words, those indoors will hear a warning sound when someone approaches your property gate or boundary.

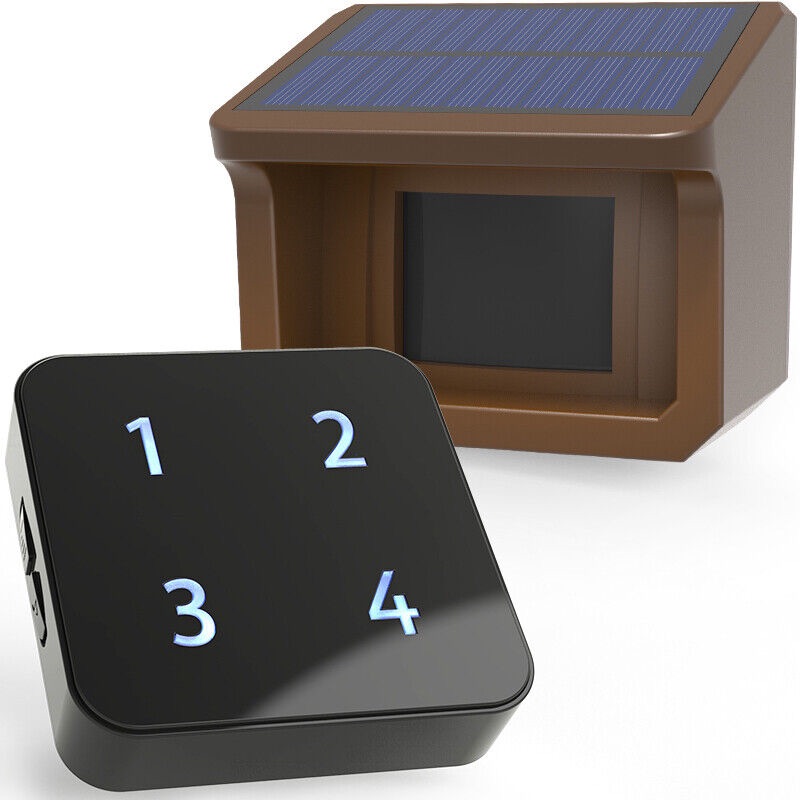

    LONG RANGE SOLAR GATE & DRIVEWAY ALERT



    The motion sensor is powered by a built in rechargeable lithium battery. No need to replace the battery and it will slowly trickle charge even in poor weather. The battery won’t go flat so don’t be concerned however, if the motion sensor is mounted in a shaded or dark area with poor sunlight, the sensor battery can be recharged. We provide our customers with a free 5V USB charger just for that purpose.

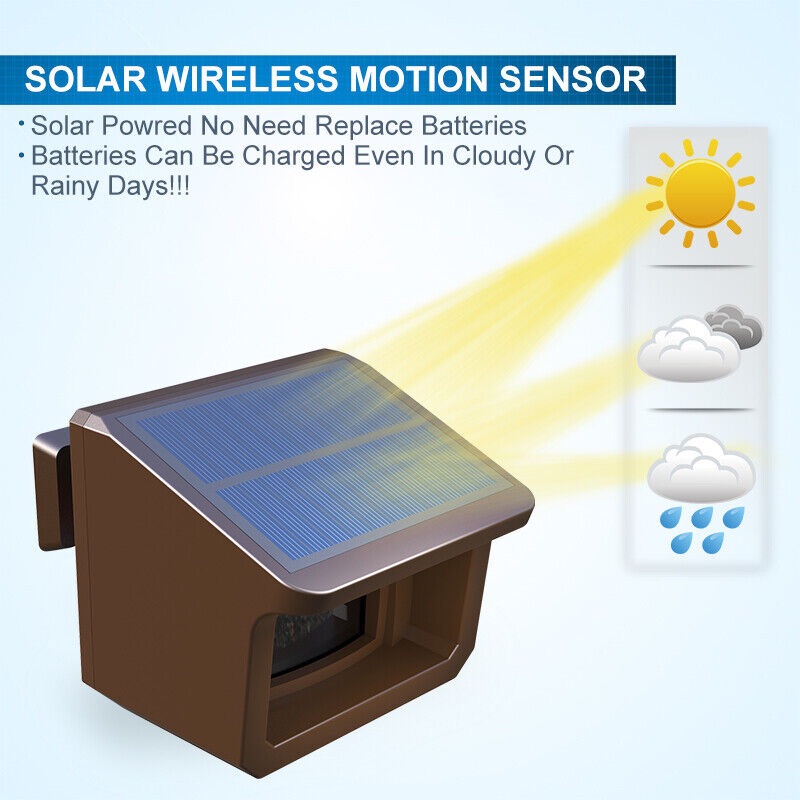

    Solar wireless motion sensor



    Wireless sensor transmission range?

    Up to 800m can be achieved depending on terrain and obstacles. A clear a line of sight is ideal. Obstacles between the transmitter and base receiver can interrupt the wireless signal distance although in most cases, simply moving the base receiver or repositing the motion sensor will fix it. Wise to test wireless reception before mounting the sensor.

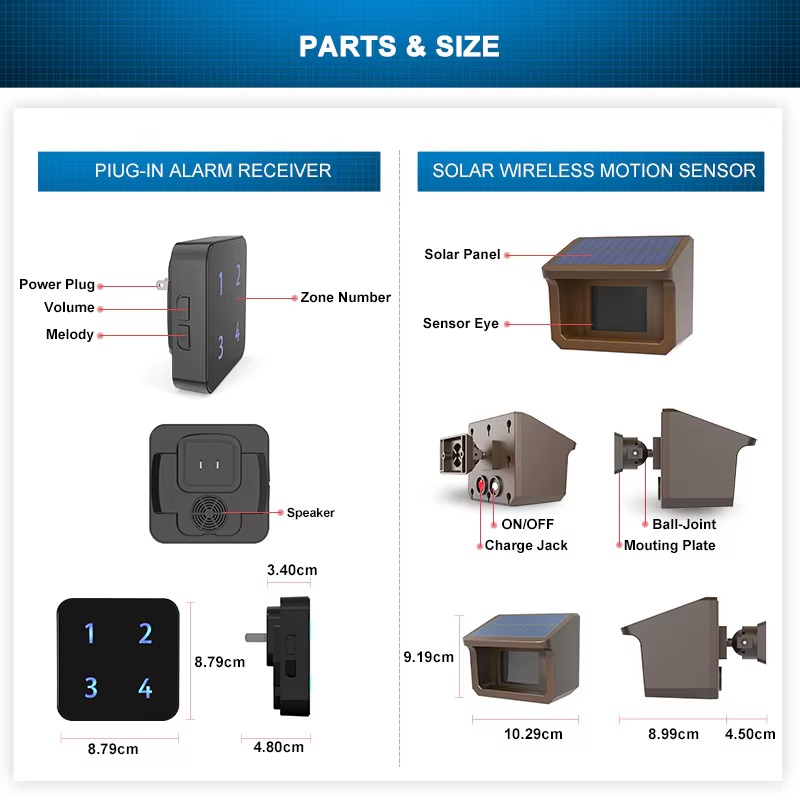

     Pars and Size

    Motion detection range?

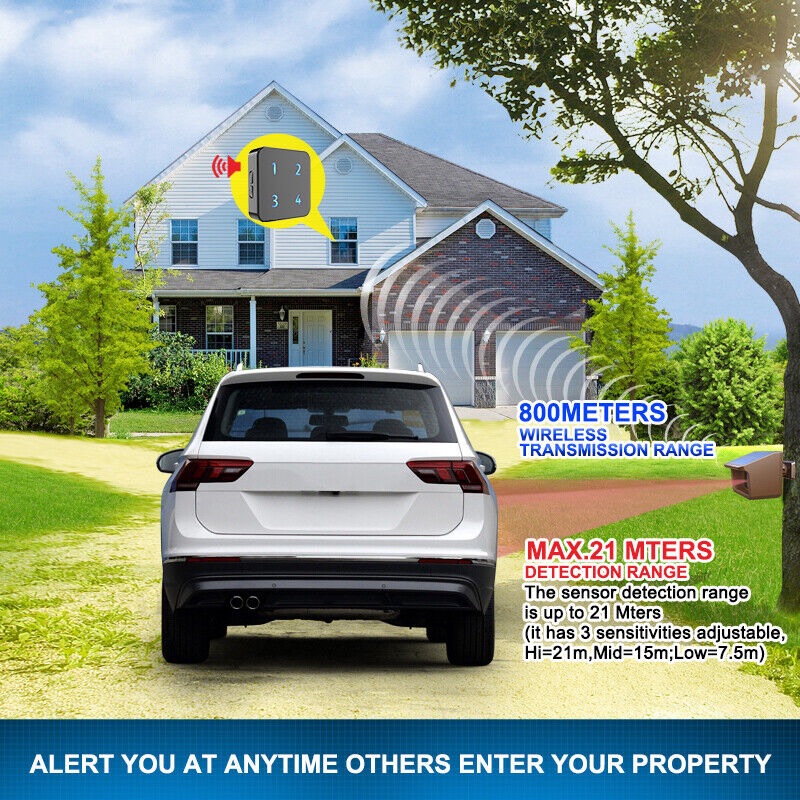

    This high precision wireless driveway alarm system features a low-rate false alert with adjustable sensitivity. The motion detection distance range is adjustable from Low, Medium to High range up to 21m. Wireless alert distance from the motion sensor to the indoor base receiver is up to 800m depending on obstacles and terrain.

    The sensor mounting height ought to be about 1m above ground level. It can be mounted higher but must be tilted slightly toward the ground. Do NOT to aim the solar sensor toward the sun or horizon as the sensor needs to have a ground point of reference. Aiming the sensor at the sun will shorten it’s life and may also affect detecting motion so do take this into account.

    The solar sensor has a 60°detection angle up to 21m motion sensing distance, the wireless driveway and gate alert system is both cost effective and ideal for driveways, gates, walking paths and entry or exit points.

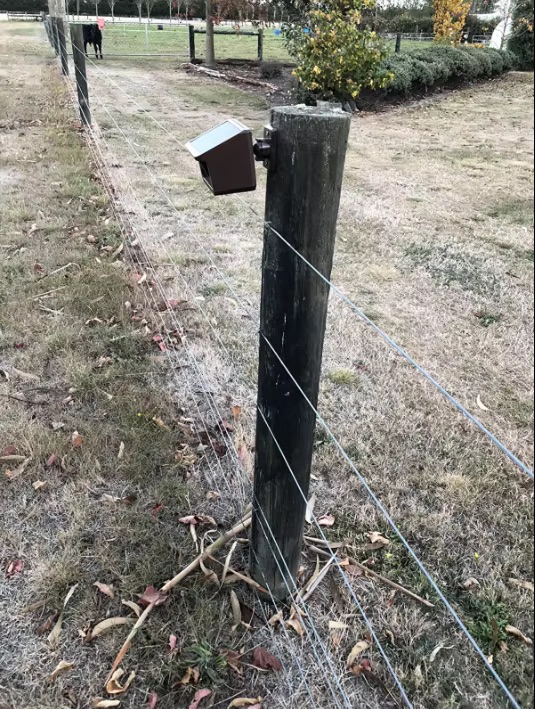

    Pictured below is a motion sensor attached to a timber boundary post. Note the sensor aimed slightly downward rather than horizontal.

    Motion sensor attached to a timber boundary post

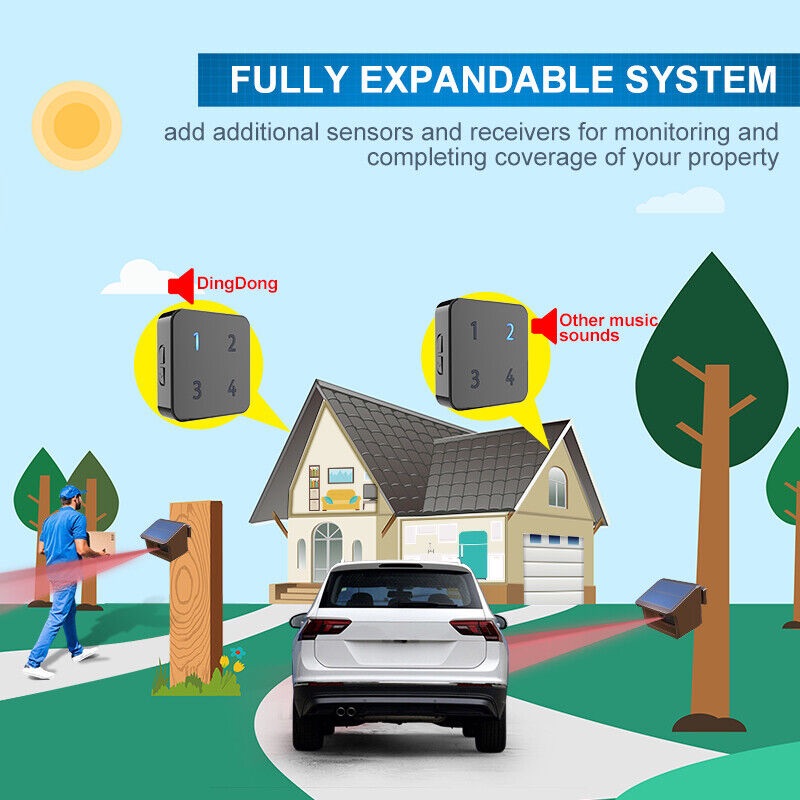

    Is this system expandable?

    The wireless driveway alarm system includes one solar motion sensor and one base receiver. Can expanded to include up to 4 solar motion sensors and/o multi base receivers for complete property coverage. 5 adjustable levels of volume with up to 35 optional chime melodies, you know exactly which zone has been breached. Additional motion sensors or base receiver can be ordered at our website checkout.

    Please note there are no base receiver or motion sensor relay inputs or outputs.  In other words, 3rd party external devices cannot be interfaced with this device.  If on the other hand you desire more functions such as a text alert module, perhaps an external strobe light or siren, we do offer a similar solar powered Industrial type system  See our Industrial Wireless Gate Alert system for more information and optional accessories.



    Is the motion sensor weatherproof?

    The motion sensor is IP66 weatherproof rated and designed for both indoor and outdoor use. Ideal for homes, yards, gates or anywhere motion is likely to be occur.  The 4 zone base receiver is not weatherproof. It must be undercover and not subjected to outdoor elements including condensation and moisture.

    Solar wireless motion sensor



    Is the kit easy to install myself?
    Anyone with a screwdriver or a cordless drill can easily attached the solar motion sensor on a wall, post, or any other stable object.  We don’t recommend mounting the motion sensor to a tree trunk or branch as wind movement can potentially cause the motion sensor to false trigger. A stable secure mounting position is recommended.

    We also recommend the solar panel to be tilted about 30 degrees and angled slightly toward the ground rather than horizontal so the sensor has a “point of reference” with mounting screws provided with each kit.



    Specifications

    • Transmission Range: Max: 800m
    • Channels: Max: 4 Channels
    • PIR Detection Range: High/Low Sensitivity: 21m/15m/7m
    • RIR Detection Angle: Horizontal: 60 degrees Vertical: 40 degrees
    • Solar power panel: Max:0.35W
    • Detector Charging: DC 5V/1A
    • Weatherproof rating: IP66

    One base receiver can accommodate up to 4 solar motion sensor panels although base receiver numbers are unlimited.

    Wider range

    Wider range

    As mentioned, the base receiver can be up to 800m from any connected sensor, so line of sight is important with the least obstacles as possible.  That’s not to say it won’t function with a few trees in between but the less obstacles the longer the wireless distance.   In some case slightly altering the position of a motion sensor or base receiver can make all the difference but as a rule, we don’t normally encounter issues with wireless transmission distance, particularly shorter range.

    800 Meters wireless transmission range

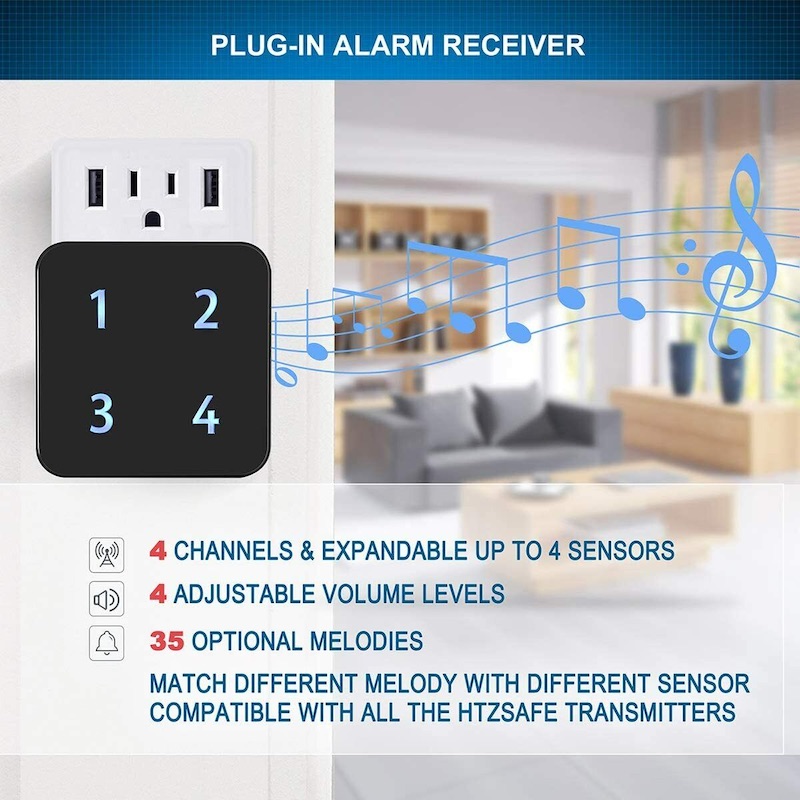

    The alarm base receiver pictured below connects to a 240V power point.  It’s not battery powered although our Solar Wireless Driveway Alert can be either mains or AA battery powered.

    Plug-in alarm receiver



    Technical Specifications

    Voltage                      AC100V – 240V

    Current                      Static current 20mA

    Alarming Current       300mA

    Wireless Frequency  433MHz FSK+FHSS

    Detection angle        15 degrees

    Max wireless range   800m

    Battery                      Rechargeable LiFePO4

    Battery capacity        500mAH

    Solar Panel               >100mA in Sunshine

    Operating Temp       -30C to 60C





    How to Arm the system

    Each kit is supplied with a 4Ch base receiver and a single solar motion sensor.  If more sensors or base receivers are needed, please call or email our office sales@hiddencamera.com.au

    In most cases the 1st PIR motion sensor is already programmed in so nothing more to do although additional motion sensors will need to be added by you and the included user manual explains how to do it which isn’t difficult.

    On the back of the motion sensor, you will see a red rubber removeable pad and beside it is the On/OFF button.

    With regard to the round red pad or grommet (looks like a button) this is actually a power interface.  Peel back the red weather protecting grommet to reveal a charge point.  The DC lead supplied along with our 5V USB power supply will recharge the battery if needed.

    To switch the motion sensor on, press and release the on/off button 4 times then wait 30 seconds.  Wave your hand in front of the senor to trigger the base receiver alert or chime.

    If not happy with the chime or melody, there are 35 different selections from which to choose. On the side of the receiver are 2 buttons. The lower button when pressed changes the chime or melody.  The upper button alters the volume level.

    To switch the sensor off, press an release the on/off button 3 times.



    How to adjust motion sensitivity levels?

    There are 3 separate levels, High, Medium, and Low.  Switch off the sensor by pressing and releasing the on/off button 3 times. Along beep will sound and the on/off LED will be off.

    Low Sensitivity       – Press the on/off 3 times   - 7.5m

    Medium Sensitivity – Press the on/off 4 times   - 15m

    High Sensitivity -       Press the on/off 5 times    - 21m



    Dimensions

    Base Receiver          88 x 88 x 48mm

    Motion Sensor          With mounting bracket attached - 90 x 103 x 92mm
